Description

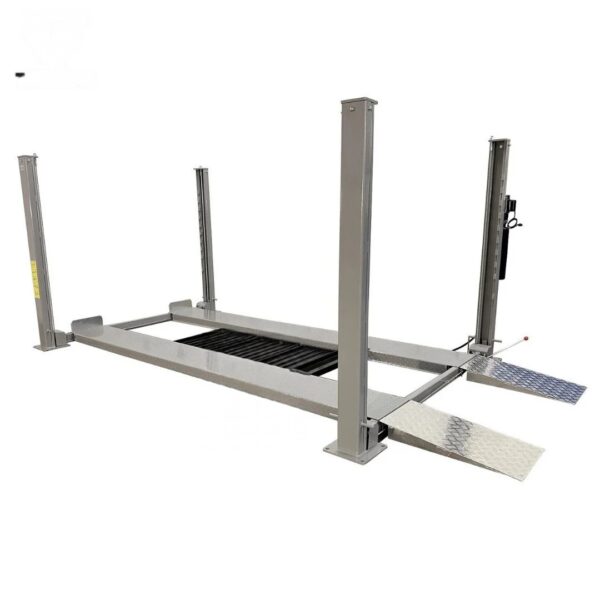

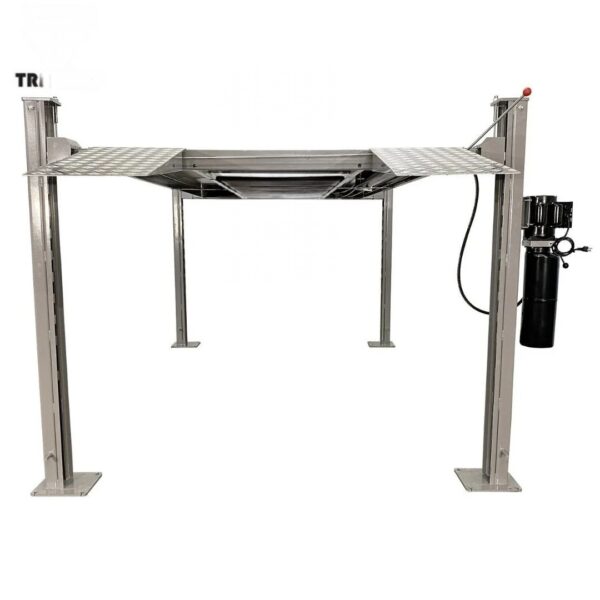

Triumph NSS-8 Four-Post Lift – Maximize Your Garage Space
The Triumph NSS-8 4 Post Car Lift is an embodiment of strength and versatility, designed to enhance the efficiency and safety of vehicle maintenance and repair in both professional and home settings. With its robust 8,000 lbs capacity, this lift can easily accommodate a wide range of vehicles, from sedans and coupes to SUVs and light trucks, making it a versatile choice for any automotive enthusiast or professional.
Constructed with meticulous attention to detail, the NSS-8 boasts an overall height of 84 inches and an overall length of 175 inches without approach ramps, extending to 195 inches with ramps included. This ensures ample space for vehicle placement and servicing. The lift’s overall width of 106 inches, combined with a lift height of 72 inches, provides significant clearance for under-vehicle access, while the runway length of 165 inches securely supports vehicles of various sizes.
Key to the NSS-8’s design is its user-centric features, including 10 locking positions for a range of service heights and a single-point lock release for ease of operation. The lift achieves full elevation in just 40 seconds, minimizing downtime and enhancing workshop throughput. Operating on a standard 110 volts, the NSS-8 is convenient for installation in various settings without the need for specialized power supplies. Its substantial shipping weight of 1,600 lbs attests to its solid construction and durability.

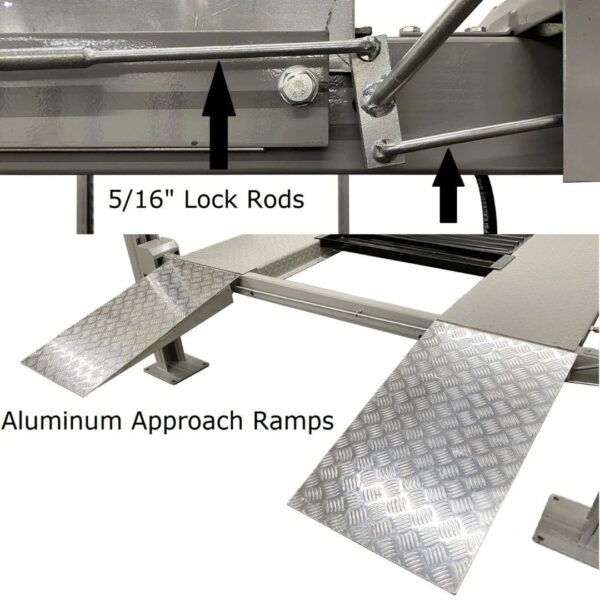

Safety and stability are paramount with the Triumph NSS-8, highlighted by its base plate size of 12″ x 12″ and a lowered height of just 5 inches, facilitating easy vehicle loading and unloading. The inclusion of approach ramps further enhances its versatility, allowing for easy drive-on and drive-off, which is particularly beneficial for vehicles with lower ground clearance.
Available through Mechanic Superstore, the Triumph NSS-8 4 Post Car Lift stands as a reliable, high-performance solution for lifting needs. Whether you’re looking to increase the capacity of your professional workshop or elevate the capabilities of your home garage, the NSS-8 offers the perfect combination of performance, convenience, and safety, solidifying its place as an invaluable tool in the world of automotive maintenance and repair. See also the AMGO PRO-12ASX alignment lift.
Product Features
8,000 LB CAPACITY: Easily accommodates most cars, classic vehicles, and daily drivers.

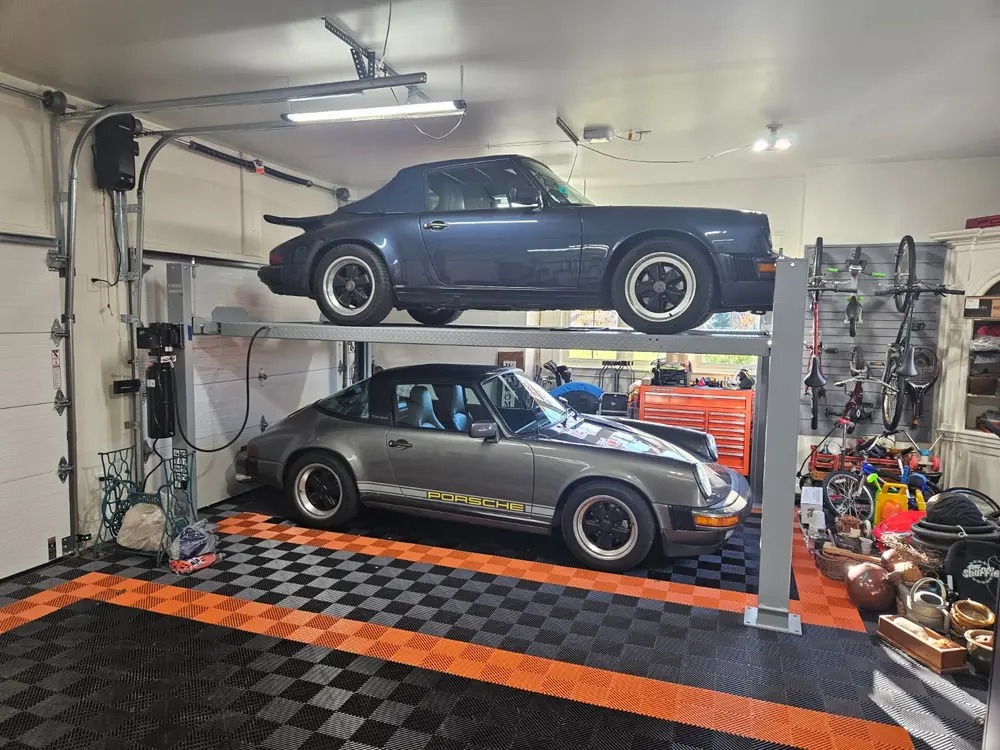

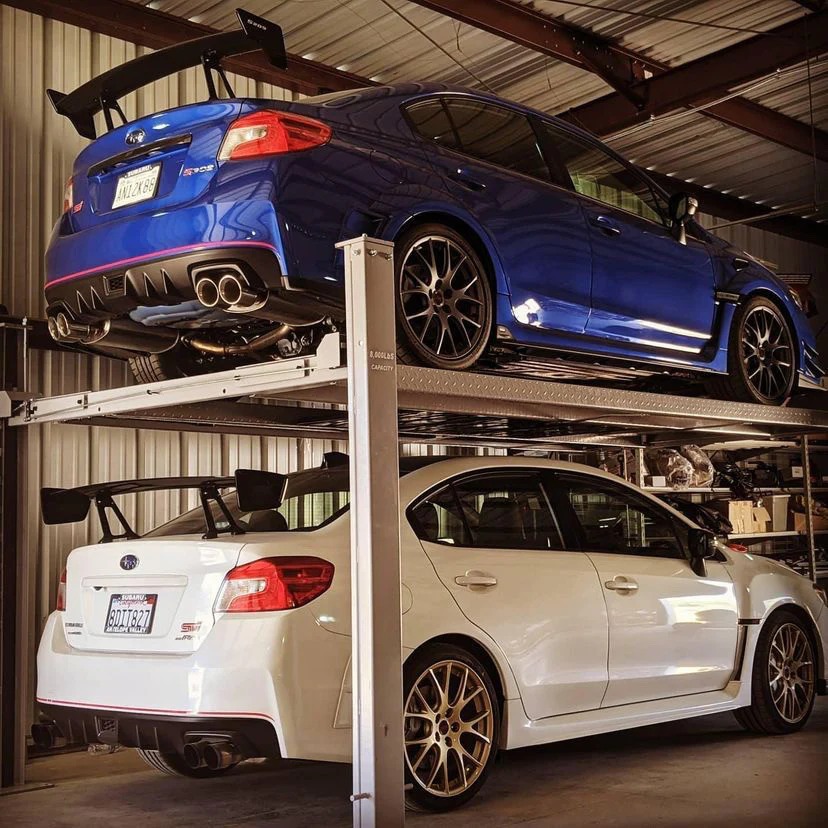

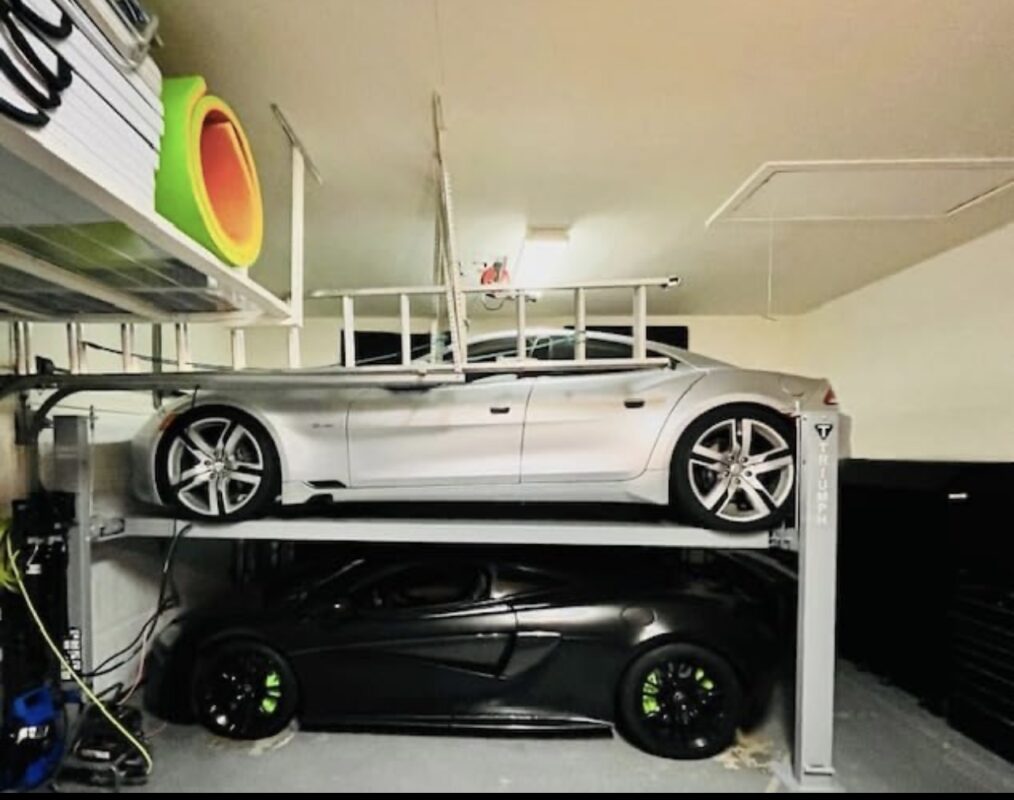

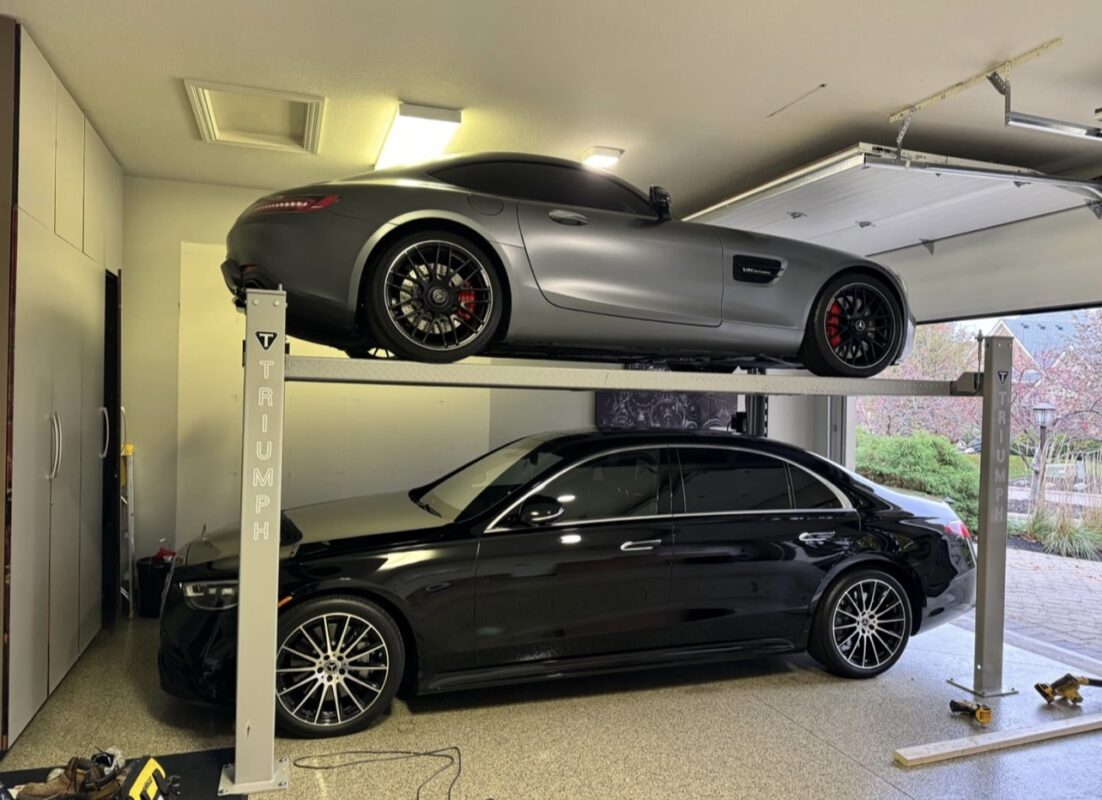

PERFECT FOR STORAGE: Add extra parking space in your garage by storing one vehicle above another.
BUILT TO LAST: Constructed with heavy-duty steel for superior strength and durability.

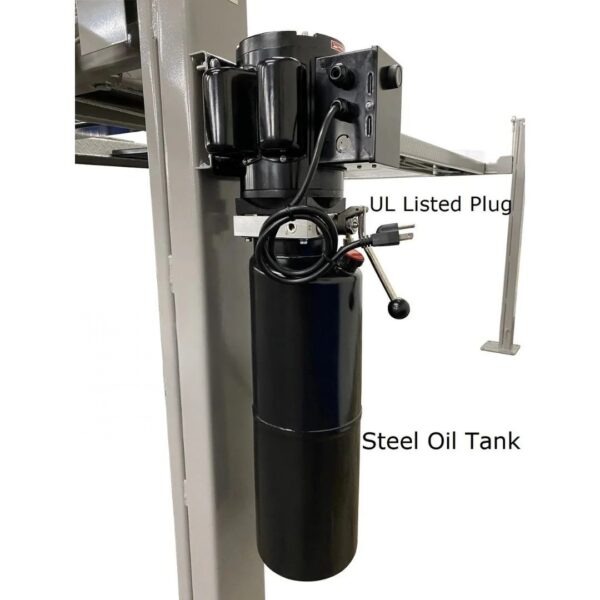

Smooth & Safe Operation: Equipped with a hydraulic system for easy lifting and multiple safety locks for secure positioning.
USER-FRIENDLY DESIGN: Drive-on ramps provide hassle-free vehicle access and positioning.

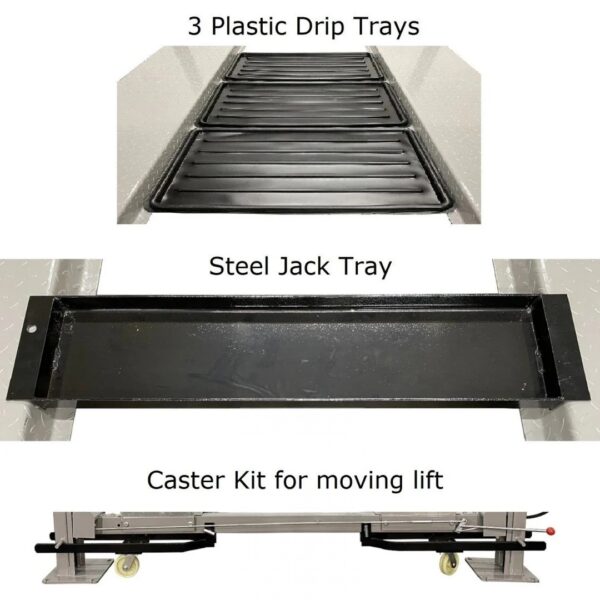

PORTABLE & VERSATILE: Includes caster wheels for easy relocation around your garage or workspace.
Your Space-Saving Solution: The Triumph NSS-8 transforms your garage into a functional, space-efficient environment. Whether you’re looking to safely store your vehicle collection or create room for your next project, this four-post lift offers the stability, ease, and performance you need. It’s the perfect solution to elevate your garage experience.
Product Specifications
| Lift Model | NSS-8 |
|---|---|
| Capacity | 8,000 lbs |
| Overall Height | 84″ |
| Overall Length Without approach ramps | 175″ |
| Overall Length With approach ramps | 195″ |
| Overall Width | 106″ |
| Lift Height | 72″ |
| Height Under Runway | 69″ |
| Runway Length | 165″ |
| Drive Thru Width | 93″ |
| Runway Width | 18″ |
| Between Runways | 37″ |
| Lowered Height | 5″ |
| Locking Positions | 10 |
| Base Plate Size | 12″ x 12″ |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 1,600 lbs |
Reviews (3)
3 reviews for Triumph NSS-8 8,000 lb 4 Post Car Lift
Related products
Alignment Lift Combo
FORWARD LIFT CROA14-EL 14,000 LB. ALI CERTIFIED ALIGNMENT FOUR-POST LIFT – 215” MAX WHEELBASE
Alignment Lift Combo
Alignment Lift Combo
Alignment Lift Combo
Alignment Lift Combo
Alignment Lift Combo
Mayflower Mount & Demount Head Plastic Insert Rim Protector Long Version
Alignment Lift Combo
Alignment Lift Combo
TUXEDO FP14KO-A 14,000 LB ALIGNMENT LIFT, 3D IMAGE WHEEL ALIGNER, ROLLING AIR JACK COMBO PACKAGE
Janae lord –
The seller was easy to work with.
Overall, it’s a great product, the only frustration that I had was the instructions are not very good and I had pieces and bolts which the instructions did not show but once I got it figured out it works great. I plugged into an existing garage 20 amp outlet and it works just fine.
The platform with the hydraulic cylinder goes on the right pushing towards the back of the unit. That was not clear on the instructions.
I recommended the lift to my brother-in law.
chad rasmussen –
Solid, safe, dependable.
Reviewed in the United States on March 23, 2021
Been using this both for storing 2 vehicles above & below, and maintaining cars for about a year now. Has held up great and really made our 2 car garage into a simple 3 car garage solution (and much cheaper than adding on more garage space!). Our ceiling is 10’6″ if you are worried about height for stacking cars. Less than that would be a real question on fitting them in (depending on vehicles). Installation took less than a day with just a little help setting the main ramp runners in place. This was the only thing keeping this from being a 1 person set up. Shipping was super fast… had it in 2 days. Really happy with the purchase, and been a joy tinkering on cars on weekends with this lift! Casters are nice for easily moving it around… drip trays work just fine keeping the vehicle below clean (old cars are a little drippy no matter how hard you try it seems). Instructions are a little sketchy but watch some YouTube videos (lots out there) and you’ll be fine. Now if owning this goodness could only make me a better mechanic! 😉
Manny –
Excellent lift for the price
Reviewed in the United States on March 17, 2018
Excellent lift for the price. Works well so far but I just put it together. Couple of items as an FYI. You need to get it off the delivery truck yourself. The way I did it was I have a wood bed car trailer with a winch I basically pulled it off the truck with the winch and left it on my trailer while I put it together. You need to call the company and they will immediately send you The assembly instruction via email. I was able to assemble the lift by myself in about 8-9 hours over 2 days. It is a pretty basic assembly. Levers crow bars and hydraulic bottle jacks allows one persons to assemble the lift. However, you need to be in pretty decent shape and have decent mechanical skill to do it yourself particularly since the runners are pretty heavy. And don’t lift with your back! If you can have 1-2 others help you, it will be way easier. The only issue I came across other than it being really heavy to do as a one man show, was when it was assembled, one of the cables was rubbing a bolt so i just reversed the two cables coming off the hydraulic piston rod and it worked well. When it came to adjusting the cables and safety blocks and safety block release lever, my wife and daughter did help. Regarding the electrical connection, it requires a 30 amp 110 V breaker and plug. This could take you a few more hours. I personally put in a 30 amp 220v breaker with 10/3 wire and capped of the second hot wire to have it available in case I want to get a second lift I want to first be sure everything works well before buying a second. To make sure it works well before you have a chance to wire up the 30 amp plug, you can wire up a temporary 20 amp plug to run it without a load and it won’t trip the breaker. If you feel like you want to try to lift a car with a 20 amp circuit. Let me say, don’t. You can fry your circuit. Hope this helps.
